Standard Features For All United Tensile Testing Machines:
- Twin ball screw drive w/solid-state servo and motor controls. Single ball screw drive for capacities less than 1,000 lbf
- Crosshead guidance system (maximum lateral motion 0.010" over full crosshead travel)
- Anti-backlash system
- "Emergency Stop" control via rocker switch, computer or mechanical limit switches
- Interchangeable, electronic load cell weighing system
- USB-connectivity for computerized machines assures data integrity and supported high data transfer rate
- Adjustable overload stop - (Defaults to load cell capacity)
- Quick-disconnect load cell and fixture system
Contact your United representative for more information. |
|
|
| | |
The United Model SSTM Tensile Testing Machine is a computer inclusive, electromechanical universal (tension and compression) test system designed to accommodate a variety of testing instruments and accessories to test various types of material including ceramics, plastics, polymers, metals & composites range 0.5 kN to 20 kN. United 'SMART' Testing Machines exceed the requirements of ASTM E-4 and ASTM E-83. |
 |
| |
| | |

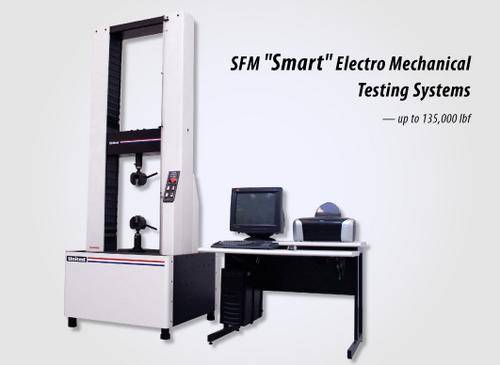

United Tensile Testing Machines "Smart 1" Electro-Mechanical Universal Floor Models are the logical choice when maximum crosshead travel and load frame capacity are required. The United SFM Models Tensile Testing Machines offer a choice of five standard load frame capacities ranging from 1,000 lbf (4.45 kN) to 135,000 lbf (600 kN). Testing can be done in tension and/or compression. United 'SMART' Testing Machines exceed the requirements of ASTM E-4 and ASTM E-83. |
|
| |
| | |

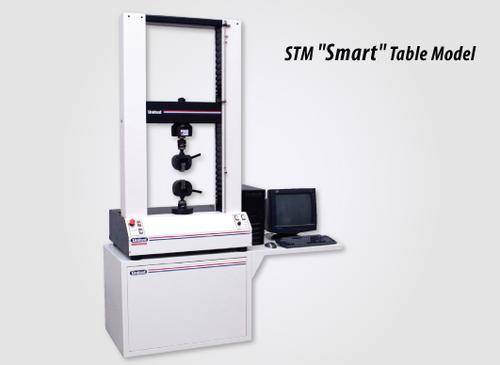

United Electro-Mechanical Universal Tensile Testing Machines Table Models are available in three standard load frame capacities: STM-30 kN with a capacity of 6,750 lbf STM-50 kN with a capacity of 50 kN 11,250 lbf STM-100 kN with a capacity of 100 kN 500 lbf. |
|
| |
| | |
United Electro-Mechanical Universal SSTM Tensile Testing Machine, table model is affordable, ultra-accurate, single-column materials Tensile Testing Machine for those low capacity testing needs. The United Electro-Mechanical Universal SSTM will conduct tests in tension and or compression (universal). Ideal for use in most testing situations including test labs, R&D applications, quality control and production testing. United 'SMART' Testing Machines exceed the requirements of ASTM E-4 and ASTM E-83. |
|
| |
| | |
United's Load Cells are designed to precisely measure the amount of force (load) applied to the specimen being tested. Available in single or dual bridge, United load cells offer the flexibility of using two readouts simultaneously, if desired. Constructed to meet ASTM E-4 requirements. |
|
| |
| |
| |
|
