| VIDEOXT Video Extensometer |
|
| |
|
|

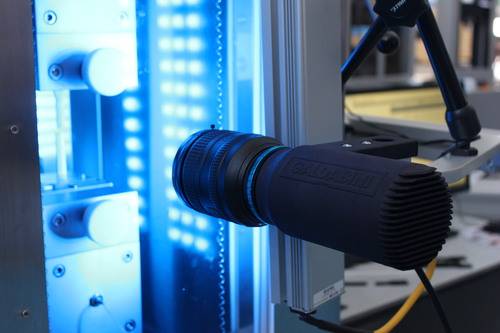

 High precision contactless Video Extensometer, bi-directional for the analysis of the longitudinal deformation Class 0,5 ISO EN 9513/ASTM E83 B1 (depending on focal lens/ PC excluded). The complete absence of contact with the specimen let this instrument be a true Universal Extensometer suitable to measure the deformation of any kind of material or finished components in mono or bidirectional mode (tensile, compression, flexure, cycle).
As an option, a software module is also available for simultaneous measurement of longitudinal and transverse deformation (see details below).
suitable for steel, plastics, rubber, resins, fabrics, wood, strands, ropes, wires, polyurethane foam, semi and finished products (soft and high resistance materials with low and high elongation).
Technical Specifications
| Camera: | High speed 5 megapixel CMOS camera USB 3 connection | | | Resolution: | 1/200,000 FOV | | | Class (ISO 9513) | 0.5 (100 mm FOV) | | | Polarized incident light: | Included | | | Marker set (felt pencils and marker plate): | Included | | | Calibrator Plate: | Included | | | Mounting set: | Included | | | SW package for transversal strain measurement (included backlight): | Optional | |
Field of View achieved with different distance/lens Fixed or Adjustable
| Distance mm | Fixed focal lens 8 mm | Fixed focal lens 12 mm | Adju. focal lens 24mm | Adju. focal lens 35mm | Adju. focal lens 50mm | Adju. focal len 70mm | Adju. focal lens 85mm | | 300 | 454 | 298 | 143 | 94 | 62 | 40 | 31 | | 400 | 609 | 402 | 195 | 129 | 87 | 58 | 45 | | 500 | 765 | 506 | 246 | 165 | 112 | 76 | 60 | | 750 | 1154 | 765 | 376 | 254 | 174 | 120 | 97 | | 1000 | 1542 | 1024 | 506 | 343 | 236 | 165 | 134 |
|
| | |
|
|
| | | |
