 Remote Load Cells Series MR01, MR02, MR03 are used with M5i and M3i Indicators just plug and test. Series R01
 Series R02  Series R03
Load Cells Series R01
Accuracy: +/-0.15% of full scale + indicator.
| Capacity: | Mode: | Model: | Order No.: | | 50 lbf (250 N) | Tension/Compression | MR01-50 | 25-02-01 | | 100 lbf (500 N) | Tension/Compression | MR01-100 | 25-02-02 | | 200 lbf (1 kN) | Tension/Compression | MR01-200 | 25-02-03 | | 500 lbf (2.5 kN) | Tension/Compression | MR01-500 | 25-02-04 | | 1000 lbf (5 kN) | Tension/Compression | MR01-1000 | 25-02-05 | | 2000 lbf (10 kN) | Tension/Compression | MR01-2000 | 25-02-06 | | 5000 lbf (25 kN) | Tension/Compression | MR01-5000 | 25-02-07 | | 10000 lbf (50 kN) | Tension/Compression | MR01-10000 | 25-02-08 |
Load Cells Series R02
Accuracy: +/-0.5% of full scale + indicator.
| Capacity: | Mode: | Model: | Order No.: | | 100 lbf (500 N) | Compression | MR02-100 | 25-03-02 | | 200 lbf (1 kN) | Compression | MR02-200 | 25-03-03 | | 500 lbf (2.5 kN) | Compression | MR02-500 | 25-03-04 | | 1000 lbf (5 kN) | Compression | MR02-1000 | 25-03-05 | | 2000 lbf (10 kN) | Compression | MR02-2000 | 25-03-06 | | 5000 lbf (25 kN) | Compression | MR02-5000 | 25-03-07 | | 10000 lbf (50 kN) | Compression | MR02-10000 | 25-03-08 |

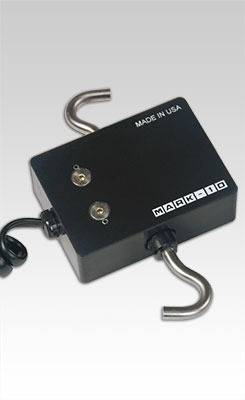

Load Cells Series R03
Accuracy: +/-0.15% of full scale + indicator.
| Capacity: | Mode: | Model: | Order No.: | | 0.25 lbf (1 N) | Tension/Compression | MR03-025 | 25-04-01 | | 0.5 lbf (2.5 N) | Tension/Compression | MR03-05 | 25-04-02 | | 2 lbf (10 N) | Tension/Compression | MR03-2 | 25-04-03 | | 5 lbf (25 N) | Tension/Compression | MR03-5 | 25-04-04 | | 10 lbf (50 N) | Tension/Compression | MR03-10 | 25-04-05 | | 20 lbf (100 N) | Tension/Compression | MR03-20 | 25-04-06 | | 50 lbf (250 N) | Tension/Compression | MR03-50 | 25-04-07 | | 100 lbf (500 N) | Tension/Compression | MR03-100 | 25-04-08 |
|
| | |
|
|
| | | |
