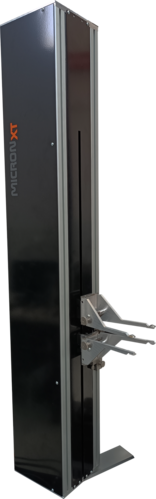

The MICRONXT Extensometer is a versatile, high-performance solution for a wide range of material testing applications. Designed to accommodate samples of various sizes and characteristics, it delivers precise measurements with exceptional resolution, accuracy, and stroke length.

Comprehensive Testing Capabilities:

• Ideal for determining key parameters such as Young’s modulus, Rp0.2, and A%
• Supports compression and cyclic testing
• Compatible with single-column machines, mountable on either the left or right side of the frame

Broad Material Compatibility:

Engineered for flexibility, MICRONXT is suitable for testing:

Metals, plastics, composites, wood, panels, concrete, wire, textiles, and more

Advanced Sensing Technology:

Equipped with a linear optical encoder for differential arm readings, the MICRONXT ensures:

• Noise-free signal acquisition
• No zeroing procedure required
• Automatic return to position via gravity after testing

 Key Features:

• Stepless base adjustment starting from 10 mm
• High-resolution measurement across the entire stroke
• PC-programmable automatic arm opening/closing
• Self-adjusting to sample thickness
• Unlimited deformation speed
• Adjustable closing force and speed
• Easy rotation for alternate test setups
• Manual gauge length adjustment with PC assistance
• Pneumatic arm operation—no external power supply needed

 Available Configurations:

• Short arms: For machines up to 100 kN (table-top)
• Long arms: For machines up to 2000 kN (floor-standing)
