| ELAST Long Stroke Extensometer |
|
| |
|
|

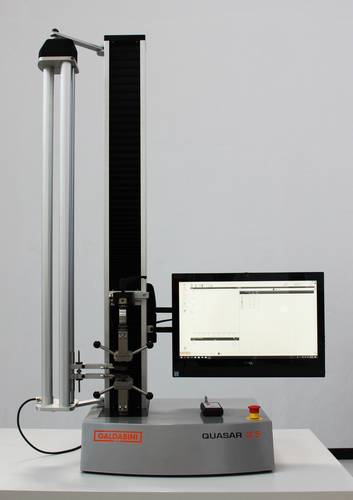

.JPG) ELAST Long Stroke Extensometer is designed to measure %elongation of rubber, high elongation plastics, foam and similar materials. Country of origin Italy.
KEY FEATURES:
- Space-Saving Table-Top Integration: Features a self-standing design that mounts directly to the back of the testing machine for optimal laboratory footprint efficiency.
- Drag-Free Measurement Arms: Equipped with independent high-resolution encoders and adjustable counterweights to eliminate sample drag effects during testing.
- Computer-Assisted Setup: Simplifies gauge length configuration through a guided digital procedure for the operator.
- Standards Compliance & Certification: Supplied by United Testing Systems Canada Limited with full ESA compliance and guaranteed alignment with national and international testing standards.
Technical Specifications:
| Measurement base:1 | | 10 - 100mm continuously adjustable | | | Stroke: | | 1000 mm | | | Drag force: | | 0.1 N (adjustable) | | | Resolution: | | | | | Accuracy ISO 9513: | Class 0.5 for deformation > 4mm | Class 1 for deformastion > 2mm | | | Accuracy ASTM E82: | Class C for deformation > 2mm | | | | Accuracy ISO 5894: | Class A | | | | Max sample thickness: | | 8mm | | | Max sample width: | | 20mm | | | Finishing: | | Aluminum | | | Ambient temperature: | | From +5 to - 40 Celsius | | | Air humidity (without condensing): | | max 80% | | | Returning position: | | Automatic (gravity) | | | Opening/closing arm: | | Manual operated | | | Gage length adjustment: | | Manual (software assisted) | |
|
| | |
|
|
| | | |
